Talbot Effect with Matter Waves: Quantum Self-Imaging

Last Updated on September 16, 2024 by Max

The Talbot effect, originally discovered with light waves, reveals a quantum phenomenon where periodic self-imaging occurs after waves pass through a diffraction grating. Extending this effect to matter waves, like electrons and atoms, highlights the wave-particle duality and opens new avenues in quantum technologies, nanofabrication, and fundamental physics.

The objective of this article is to explain the Talbot effect with matter waves, covering its theory, historical background, experimental realizations, and quantum applications.

What is the Talbot Effect?

The Talbot effect happens when a coherent wavefront, like light or matter waves, passes through a periodic structure, such as a diffraction grating. After passing through the grating, the wavefront forms repeated images of the original pattern. These images appear at specific distances called Talbot distances.

The effect occurs in the near field, close to the grating. This self-imaging is a result of the wave-like behavior of particles, whether they are photons, electrons, or other matter waves.

Historical Background

1. Discovery by Henry Fox Talbot (1836): Talbot observed the self-imaging phenomenon with light waves passing through a diffraction grating, marking the initial discovery of the Talbot effect in 1836.
2. Pre-Quantum Mechanics Era: The effect was understood in the context of classical wave theory, long before quantum mechanics was developed.
3. Extension to Matter Waves (20th Century): After the de Broglie hypothesis proposed that particles exhibit wave-like properties, the Talbot effect was extended to matter waves, such as electrons and atoms [1].
4. Experimental Verification: In the mid-20th century, experiments confirmed the wave-particle duality of matter, leading to the observation of the Talbot effect with electrons, atoms, and molecules.
5. Significance: The Talbot effect became a key demonstration of quantum coherence and wave-particle duality, influencing the development of quantum technologies and theoretical physics.

Theoretical Background

Particles as de Broglie Waves

To understand the Talbot effect with matter waves, we must first consider the wave nature of particles, as described by the de Broglie hypothesis. According to de Broglie, every particle with momentum \( p \) has an associated wavelength given by:

\[\lambda = \frac{h}{p}\]

where:

• \(\lambda\) is the de Broglie wavelength,
• \(h\) is Planck’s constant,
• \(p\) is the momentum of the particle.

When a matter wave passes through a periodic structure like a diffraction grating with period \( d \), the wave is diffracted into multiple orders. The resulting interference pattern can lead to self-imaging at specific distances from the grating. This phenomenon is a manifestation of the quantum mechanical nature of particles.

Derivation of the Talbot Effect for Matter Waves

Consider a matter wave incident on a grating with a period \( d \). After passing through the grating, the wave function can be expressed as a superposition of diffracted waves:

\[\psi(x, 0) = \sum_{n=-\infty}^{\infty} c_n e^{i \frac{2\pi n x}{d}} \]

Here, \( c_n \) are the coefficients corresponding to the diffraction orders, and \( x \) represents the position along the grating.

Phase Evolution and Propagation

As the wave propagates along the \( z \)-axis, the phase of each diffraction order evolves. The wave vector for each diffraction order has two components:

• \( k_x = \frac{2\pi n}{d} \) (component parallel to the grating)
• \( k_z = \sqrt{k^2 – k_x^2} \) (component along the propagation direction)

For small diffraction angles, where \( k_x \ll k \), the component \( k_z \) can be approximated as:

\[k_z \approx k – \frac{k_x^2}{2k} \]

Substituting \( k_x = \frac{2\pi n}{d} \) and \( k = \frac{2\pi}{\lambda} \), we get:

\[k_z \approx k – \frac{2\pi^2 n^2}{kd^2} = k – \frac{\pi n^2 \lambda}{d^2}\]

The phase evolution as the wave propagates is given by \( \text{Phase} = k_z z \). Substituting the expression for \( k_z \) and ignoring the zeroth-order phase term \( kz \) in the near-field regime close to the grating, we have:

\[\psi_n(x, z) = c_n e^{i \left(\frac{2\pi n x}{d} – \frac{\pi n^2 z\lambda}{d^2}\right)}\]

Thus, the wave function for each diffraction order at a distance \( z \) is:

\[\psi(x, z) = \sum_{n=-\infty}^{\infty} c_n e^{i \left(\frac{2\pi n x}{d} – \frac{\pi n^2 z\lambda}{d^2}\right)}.\]

From the above equation, we see that at specific distances \( z = m \cdot z_T \), where \( z_T = \frac{d^2}{\lambda} \), the phase shifts align perfectly. This alignment happens by a factor of \( \pi \), causing the wavefront to self-image. As a result, the pattern repeats, but with alternating phases.

Talbot Carpet: The Fractional Talbot Patterns

The Talbot carpet visually represents wavefront intensity as a function of propagation distance, revealing how matter waves undergo periodic self-imaging at specific intervals called Talbot distances. In addition to these primary Talbot images, partial self-images also appear at fractional Talbot distances, described by:

\[z_{T,m} = \frac{z_T}{m}\]

where \( m \) is an integer.

These fractional distances create more intricate patterns rather than a complete reconstruction of the original wavefront. The coherence of the matter wave is essential for observing these clear self-images, as any loss of coherence will blur the Talbot pattern. The fractional Talbot effect, where the wavefront self-images at fractions of the Talbot distance, reveals complex interference patterns that are significant in studying wave coherence and quantum mechanics.

For a grating with period \( d \), the fractional Talbot distance is given by:

\[z_{T,m} = \frac{d^2}{m\lambda}\]

At these distances, the wavefront forms partial self-images with possible phase shifts or modulations, offering deeper insights into wave interference and coherence.

Temporal Talbot Effect

The Talbot effect also manifests in the time domain, known as the Temporal Talbot Effect. This effect occurs when a periodic sequence of pulses, such as those produced by an ultrafast laser, undergoes self-imaging at specific time intervals. The temporal Talbot effect results from the interference of different frequency components within the pulse train, analogous to the spatial Talbot effect.

For a pulse train with a temporal period \( T \), the temporal Talbot effect causes the pulse sequence to repeat at integer multiples of a fundamental time interval \( T_T \), defined as:

\[T_T = \frac{T^2}{\tau}\]

where \( \tau \) is the duration of each pulse. At these intervals, the entire sequence of pulses is reproduced, just as a wavefront is reproduced in the spatial Talbot effect.

The temporal Talbot effect is significant in optical communication and signal processing, where it is used to manipulate pulse sequences and improve time-domain measurement resolution. In the context of matter waves, the temporal Talbot effect could be observed in systems where particles are modulated periodically in time.

Experimental Realizations

The Talbot effect with matter waves has been observed experimentally using various particles:

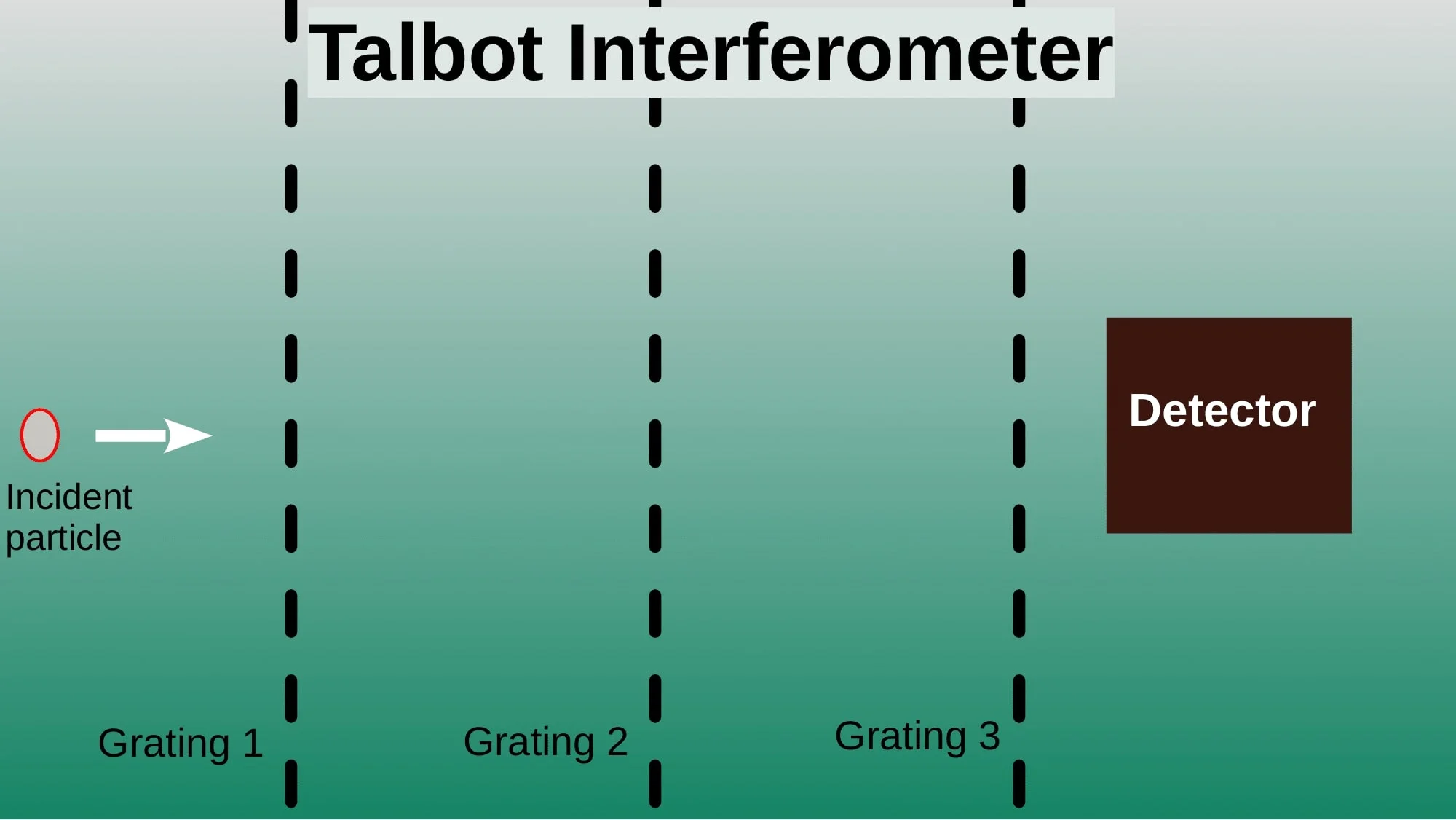

• Electrons: The first experimental realization of a Talbot interferometer for electrons was conducted by Benjamin J. McMorran and Alexander D. Cronin in 2009 [2]. They employed two nanofabricated gratings to observe the Talbot effect, successfully mapping the near-field interference pattern, or Talbot carpet, of electron de Broglie waves. This interferometer demonstrated exceptional sensitivity to wavefront distortions, making it a valuable tool for advanced applications in electron microscopy, lithography, and beam diagnostics, where precise wavefront manipulation and high-resolution imaging are essential.
• Neutrons: Neutron Talbot interferometers have been used for precision measurements, exploiting the wave properties of neutrons [3, 4]. Neutrons, due to their neutral charge, are less affected by electric fields, making them ideal for experiments where electromagnetic interference must be minimized. The Talbot effect with neutrons has been used in neutron imaging and interferometry, enabling high-precision measurements of material properties.
• Atoms: The atomic Talbot effect has been observed with cold atoms and Bose-Einstein condensates, providing insights into quantum coherence and interference [5, 6]. In these experiments, ultra-cold atoms are allowed to pass through a light grating, where they exhibit Talbot self-imaging. This phenomenon has applications in atom interferometry and quantum metrology, where precise control over atomic wave packets is essential.
• Molecules: The Talbot effect has also been observed with large molecules, such as fullerene (C60) and even complex organic molecules [7, 8]. These experiments push the boundaries of quantum mechanics, testing the limits of wave-particle duality for increasingly massive particles. The observation of the Talbot effect with molecules suggests that quantum coherence can be maintained even in complex systems, providing a pathway for the development of quantum technologies using molecular interferometry.

Applications and Significance

The Talbot effect with matter waves has significant implications for quantum technologies:

• Quantum Lithography: The periodic self-imaging of matter waves can be used to create high-resolution patterns on surfaces, enabling advances in nanofabrication.
• Quantum Sensors: The sensitivity of the Talbot effect to external fields makes it useful in developing precision sensors for magnetic and gravitational fields.
• Fundamental Physics: The Talbot effect serves as a testbed for exploring quantum coherence, decoherence, and the transition from quantum to classical behavior.

Conclusion

The Talbot effect with matter waves highlights the quantum concept of wave-particle duality. Here, particles act like waves and form periodic self-images. This effect deepens our understanding of quantum coherence and interference. It also has practical applications in quantum technologies, including high-resolution lithography, precision sensors, and advanced interferometry. The Talbot effect extends from light to matter waves. It has been observed with electrons, atoms, and molecules. This demonstrates its importance in fundamental physics and the development of future quantum devices.
